Spectrophotometer
Portable SVR 36-83
The spectrophotometer SVR 36-83 is a compact instrument that measures/calculates for any type of lighting fixture/light source:
- spectral irradiance
- all the colorimetric parameters in compliance with CIE current regulations (CIE 15:2004 e CIE 13.3-1995) and with the criteria outlined in the IES TM-30-15 standard
- 1 acquisition sensor: high-sensitivity micro-spectrometer
- Measurement range for illuminance 0,01÷300.000,00 Lux
- Chromaticity coordinates x, y compliant with CIE 1931 color space
- Chromaticity coordinates u’, v’ compliant with CIE 1976 color space
- Measurement range for color temperature 0 – 15.000° Kelvin
- Measurement uncertainty for illuminanace < 1,00%
- Excellent quality-price ratio
- Free post-selling assistance and support
SVR 36-83 is a handheld spectrophotometer equipped with a high-sensitivity acquisition sensor able to optically break down the incoming light into its different spectral components.
DISPLAY OF RESULTS

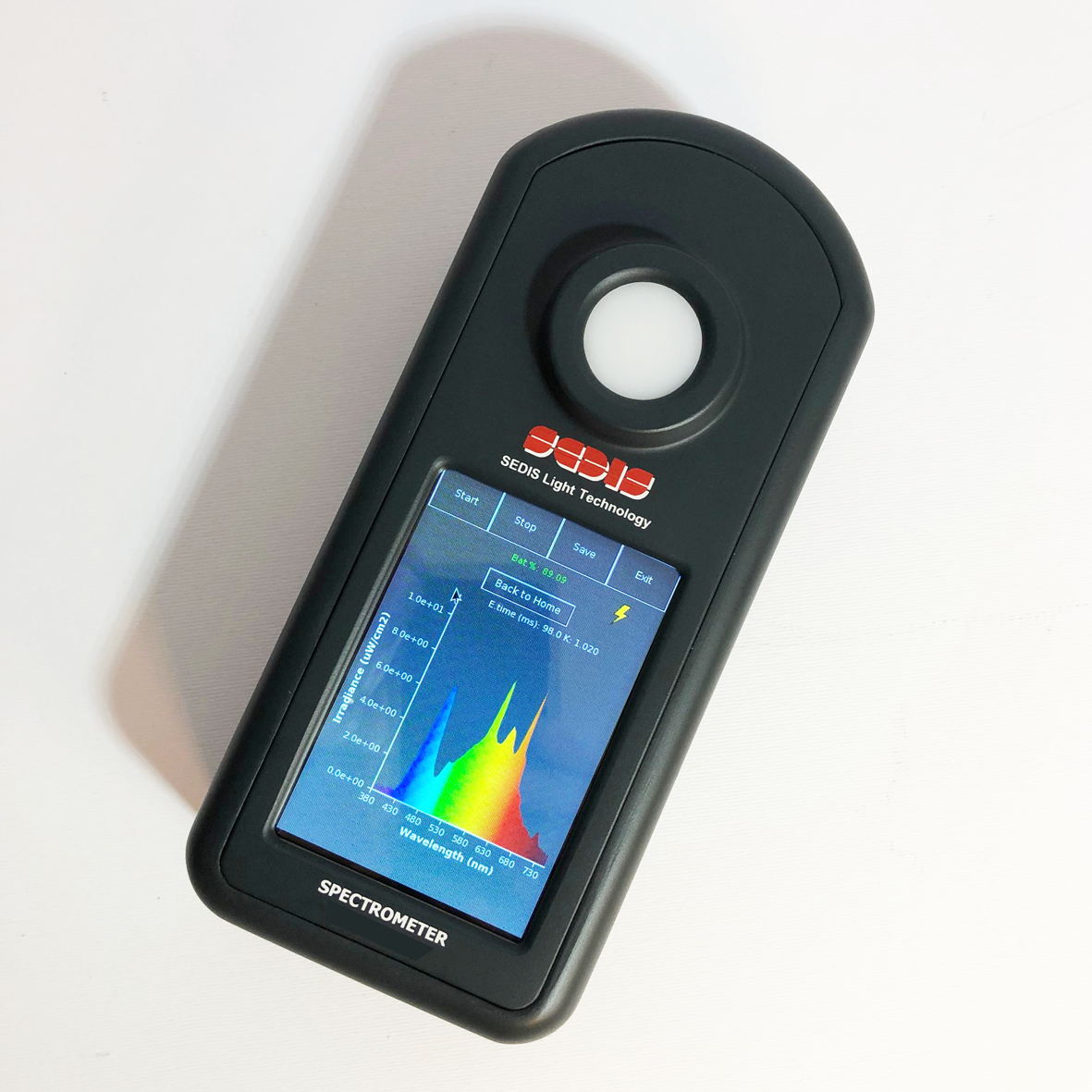

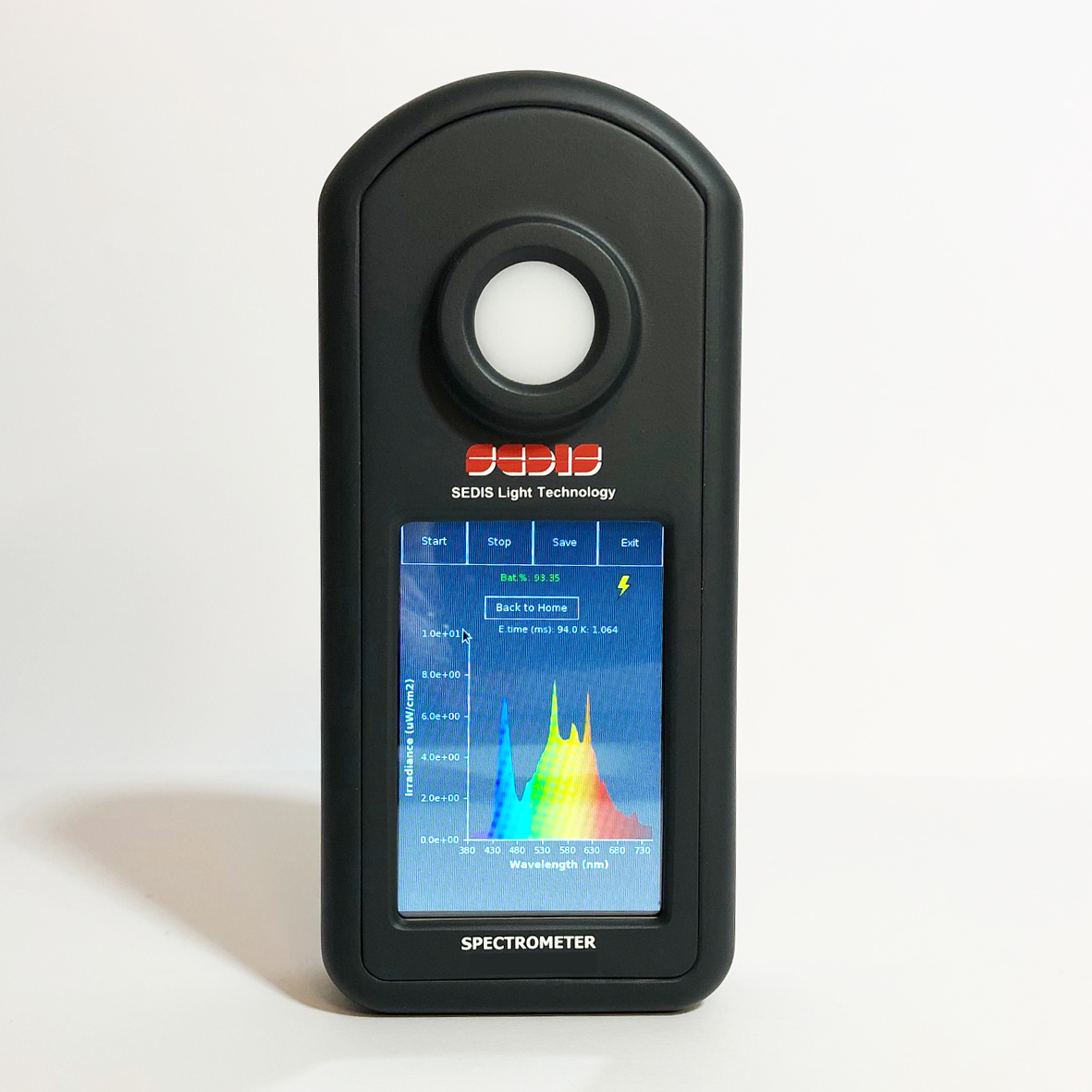

- spectral irradiance in the range 360 nm – 830 nm
- list of the following parameters displayed in table form:
- tristimulus values X, X1, X2, Y e Z
- chromaticity coordinates x, y (CIE1931 color space)
- chromaticity coordinates u’, v’ (CIE1976 color space)
- correlated color temperature (CCT)
- chromatic rendering index (CRI)
- chromatic difference (DC)
- Fidelity Index
- Gamut Index
- total irradiance value in the range 360 nm – 830 nm

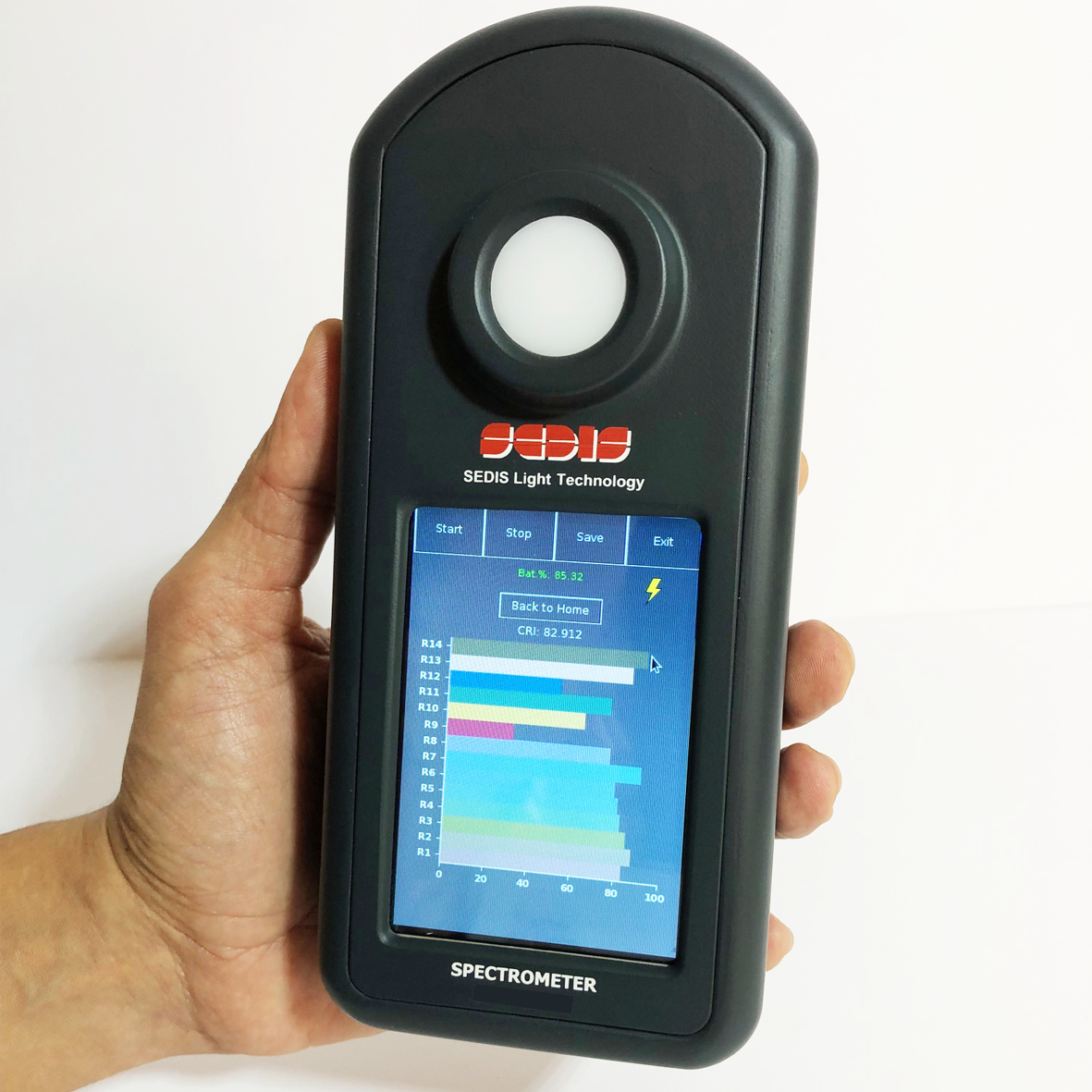

- bar chart displaying components for the calculation of the chromatic rendering index according to the 14 color samples envisaged by the CIE standard
- CIE1931 diagram with the Planckian locus and the indication x and y coordinates as well as their relevant values
- CIE1976 diagram with the indication of the point corresponding to the u’ e v’ coordinates as well as their relevant values
- Diagram of Gamut Area Index (GAI)
DATI ELABORATI E SALVATI TRAMITE IL SOFTWARE
- livelli di irradianza spettrale tra 360 nm e 830 nm interpolati a 1 nm, espressi in mW cm-2 nm-1
- valori di tristimolo X, X1, X2, Y e Z
- coordinate cromatiche x, y (spazio colore CIE1931)
- coordinate cromatiche u’, v’ (spazio colore CIE1976)
- temperatura di colore correlata (CCT);
- indice di resa cromatica (CRI)
- differenza cromatica (DC)
- Fidelity Index
- Gamut Index
- componenti di colore (R1, R2, …. , R14)
- valore di irradianza totale nell’intervallo 360 nm – 830 nm
DATA PROCESSED AND SAVED BY THE SOFTWARE
- simple text files easy to process
